| Article number | 70.7204 |
|---|---|
| Unit of packaging | 1 |
| Width in mm | 1200 mm |
| Sink | Yes |
| Material | Stainless steel |
| Colour | Silver |

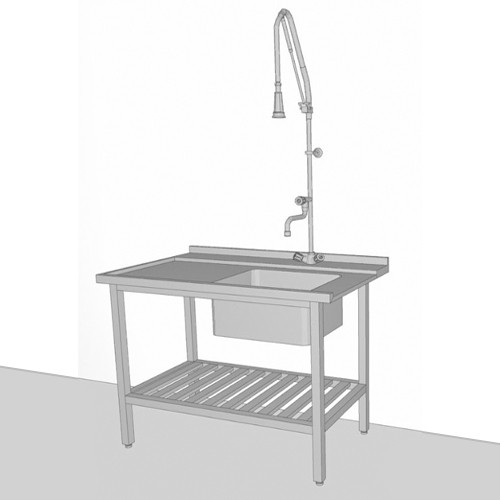

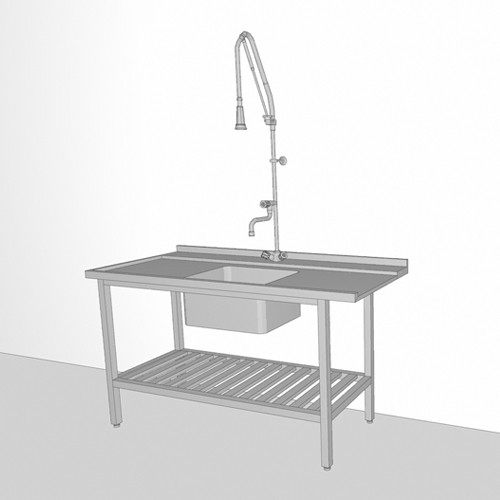

SUPPLY TABLE 1200X730MM
article number.
70.7204
Performance:
Dimensions: approx. 1200x750x900mm lxwxh
The blade is made of stainless steel, 1.25mm thick, AISI 304, KSI 320 ground. The blade is double-angled, resulting in a blade thickness of 40mm. The top is glued with plywood and filled with plywood strips that have been treated with an anti-fungal coating.
lace construction; The wall side (rear) is provided with a block profile of 40mm high and 20mm thick, a threshold with basket guide profile and a connection profile to the dishwashing machine.
In the top a welded sink, dimensions 500x400x250mm with 1.5" drain plug and a perforated standpipe. In the middle behind the sink a tap hole for a separately offered swivel tap with pre-rinse shower ("overhead spray").
The top is mounted on an open frame of stainless steel tube profiles 40x40x1.25mm, AISI 304, KSI 320 ground. The frame is fitted with height-adjustable plastic feet that compensate for differences of approx. 30mm.
A stainless steel grille is mounted in the frame.
Optional/surcharge
- A stainless steel container for placing a water softener in the frame of the table (order number 70.7201)
- A pre-rinse shower tray mounting (order number 88.7288)
€ 1.874,75 excl. BTW p/st.
€ 2.268,45 incl. BTW p/st.
Performance:
Dimensions: approx. 1200x750x900mm lxwxh
The blade is made of stainless steel, 1.25mm thick, AISI 304, KSI 320 ground. The blade is double-angled, resulting in a blade thickness of 40mm. The top is glued with plywood and filled with plywood strips that have been treated with an anti-fungal coating.
lace construction; The wall side (rear) is provided with a block profile of 40mm high and 20mm thick, a threshold with basket guide profile and a connection profile to the dishwashing machine.
In the top a welded sink, dimensions 500x400x250mm with 1.5" drain plug and a perforated standpipe. In the middle behind the sink a tap hole for a separately offered swivel tap with pre-rinse shower ("overhead spray").
The top is mounted on an open frame of stainless steel tube profiles 40x40x1.25mm, AISI 304, KSI 320 ground. The frame is fitted with height-adjustable plastic feet that compensate for differences of approx. 30mm.
A stainless steel grille is mounted in the frame.
Optional/surcharge
- A stainless steel container for placing a water softener in the frame of the table (order number 70.7201)
- A pre-rinse shower tray mounting (order number 88.7288)
Dimensions: approx. 1200x750x900mm lxwxh
The blade is made of stainless steel, 1.25mm thick, AISI 304, KSI 320 ground. The blade is double-angled, resulting in a blade thickness of 40mm. The top is glued with plywood and filled with plywood strips that have been treated with an anti-fungal coating.
lace construction; The wall side (rear) is provided with a block profile of 40mm high and 20mm thick, a threshold with basket guide profile and a connection profile to the dishwashing machine.
In the top a welded sink, dimensions 500x400x250mm with 1.5" drain plug and a perforated standpipe. In the middle behind the sink a tap hole for a separately offered swivel tap with pre-rinse shower ("overhead spray").
The top is mounted on an open frame of stainless steel tube profiles 40x40x1.25mm, AISI 304, KSI 320 ground. The frame is fitted with height-adjustable plastic feet that compensate for differences of approx. 30mm.
A stainless steel grille is mounted in the frame.
Optional/surcharge
- A stainless steel container for placing a water softener in the frame of the table (order number 70.7201)
- A pre-rinse shower tray mounting (order number 88.7288)
