Ata

COOKING TABLE ELECTRIC 2-PLACE ATA 700 K7-ECU05PP DIM. 40X70X90CM. 400V/5200W ATA

Design: completely made of stainless steel. Equipped with 2 hotplates (2 x 230mm), base cabinet with revolving door, 150mm. high adjustable legs.

COOKING TABLE ELECTRIC 4 PLACES ATA 700 K7-ECU10PP DIM. 80X70X90CM. 400V/10400W ATA

Design: completely made of stainless steel. Equipped with 4 hotplates (4 x 230mm), base cabinet with 2 revolving doors, 150mm. high adjustable legs.

COOKING TABLE ELECTRIC 6 PLACES ATA 700 K7-ECU15PP DIM. 120X70X90CM. 400V/15600W ATA

Design: completely made of stainless steel. Equipped with 6 hotplates (6 x 230mm.), base cabinet with 3 revolving doors, 150mm. high adjustable legs.

COOKING TABLE ELECTRICAL CERAMIC 2-ZONES ATA 700 K7-EVC 05PP DIM. 40X70X90CM. 400V/4600W ATA

Design: completely made of stainless steel. Equipped with electric ceramic hob with 2 cooking zones, base cabinet with revolving door, 150mm. high adjustable legs.

COOKING TABLE ELECTRICAL CERAMIC 4-ZONES ATA 700 K7-EVC 10PP DIM. 80X70X90CM. 400V/9200W ATA

Design: completely made of stainless steel. Equipped with electric ceramic hob with 4 cooking zones, base cabinet with 2 revolving doors, 150mm. high adjustable legs.

COOKING TABLE INDUCTION 2-ZONES ATA 700 K7-ECI05PP DIM. 40X70X90CM. 400V/10000W ATA

Design: completely made of stainless steel. Equipped with induction hob with 2 cooking zones, base cabinet with revolving door, 150mm. high adjustable legs.

COOKING TABLE INDUCTION 4-ZONES ATA 700 K7-ECI10PP DIM. 80X70X90CM. 400V/20000W ATA

Design: completely made of stainless steel. Equipped with induction hob with 4 cooking zones, base cabinet with 2 revolving doors, 150mm. high adjustable legs.

COOKING TABLE GAS 2-BURNS ATA 700 K7-GCU05PP DIM. 40X70X90CM. ATA

Design: completely made of stainless steel. Equipped with 2 burners (1x90mm., 3095 kcal/h (3.6kW); 1x110mm., 4729 kcal/h (5.5kW)), base cabinet with revolving door, 150mm. high adjustable legs. Total nominal heat load: 7824 kcal/h (9.1kW).

COOKING TABLE GAS 4-BURNS ATA 700 K7-GCU10PP DIM. 80X70X90CM. ATA

Design: completely made of stainless steel. Equipped with 4 burners (2x90mm., at 3095 kcal/h (3.6kW); 2x110mm., at 4729 kcal/h (5.5kW)), base cabinet with 2 revolving doors, 150mm. high adjustable legs. Total nominal heat load: 15649 kcal/h (18.2kW).

COOKING TABLE GAS 6-BIT ATA 700 K7-GCU15PP DIM. 120X70X90CM. ATA

Design: completely made of stainless steel. Equipped with 6 burners (3x90mm., at 3095 kcal/h (3.6kW); 3x110mm., at 4729 kcal/h (5.5kW)), base cabinet with 3 revolving doors, 150mm. high adjustable legs. Total nominal heat load: 23473 kcal/h (27.3kW).

FRYER ELECTRIC 2X7LTR.-BAGS ATA-700 K7-EFG0507 ATA.

Design: completely made of stainless steel. Equipped with 2 basins (7ltr min./8ltr max.) with fat drain tap, frying baskets (10x24.5x10cm), removable crumb sieves, lids and a removable fat collection tray with sieve in the substructure. The cabinet is closed by 1 stainless steel revolving door. The heating elements can be folded up with fixation. Also equipped with built-in temperature limiter, stepless temperature controller with on/off switch (adjustable from 100-190ºC), 150mm high adjustable legs.

FRYER ELECTRIC 1X15LTR.-PAN ATA-700 K7-EFG0515 ATA.

Design: completely made of stainless steel. Equipped with 1 basin (15 ltr) with fat drain tap, frying basket, removable crumb sieve, lid and a removable fat collection tray with sieve in the substructure. The cabinet is closed by 1 stainless steel revolving door. The heating element can be folded up with fixation. Also equipped with built-in temperature limiter, stepless temperature controller with on/off switch (adjustable from 100-190ºC), 150mm high adjustable legs.

FRYER ELECTRIC 2X15LTR.-BANKS ATA-700 K7-EFG1015 ATA.

Design: completely made of stainless steel. Equipped with 2 basins (2x15ltr) with fat drain valves, frying baskets, removable crumb sieves, lids and a removable fat collection tray with sieve in the base. The cabinet is closed by means of 2 stainless steel revolving doors. The heating elements can be folded up with fixation. Also equipped with built-in temperature limiter, stepless temperature controllers with on/off switch (adjustable from 100-190ºC), 150mm high adjustable legs.

BAKING TRAY ELECTRIC SMOOTH-400 STEEL WITH DOOR ATA-700 K7-EFB05VVL ATA

Version: stainless steel. Baking tray made of flat and smoothly ground steel plate (excl. stainless steel splash stand art. no. 82.7475). Equipped with removable fat collection drawer, stepless temperature controller with on/off switch (adjustable from 50-300ºC) and indicator light, base cabinet with revolving door, 150mm high adjustable legs.

BAKING TRAY ELECTRIC RIBBED-400 STEEL WITH DOOR ATA-700 K7-EFB05VVL ATA

Version: stainless steel. Baking tray made of ribbed steel plate (excl. stainless steel splash stand art. no. 82.7475). Equipped with removable fat collection drawer, stepless temperature controller with on/off switch (adjustable from 50-300ºC) and indicator light, base cabinet with revolving door, 150mm high adjustable legs.

BAKING TRAY ELECTRIC SMOOTH-400 STEEL WITH DOORS ATA-700 K7-EFB10VVL ATA

Version: stainless steel. Baking tray made of flat and smoothly ground steel plate (excl. stainless steel spatula art. no. 82.7476). Equipped with removable fat collection drawer, stepless temperature controller with on/off switch (adjustable from 50-300ºC) and indicator light, base cabinet with revolving doors, 150mm high adjustable legs.

WORK UNIT K7-NNE02VV OPEN ATA

Design: completely made of stainless steel. Equipped with open cabinet with bottom plate and 150mm high adjustable legs.

WORK UNIT K7-NNE05PP 400 ATA

Design: completely made of stainless steel. Equipped with cabinet with revolving door and 150mm high adjustable legs.

WORK UNIT K7-NNE10PP 800 ATA

Design: completely made of stainless steel. Equipped with cabinet with revolving doors and 150mm high adjustable legs.

WORK UNIT K7-NNC05PP 400L ATA

Design: completely made of stainless steel. Equipped with drawer including cabinet with revolving door and 150mm high adjustable legs.

WORK UNIT K7-NNC10PP 800L ATA

Design: completely made of stainless steel. Equipped with drawers including cabinet with revolving doors and 150mm high adjustable legs.

GLASS WASHING MACHINE AL403 DIM. 47X53X70CM. 230V/2800W ATA

Version: stainless steel 18/10. Equipped with drain pump, double-walled insulated door.

Program duration : 60/120 seconds.

Capacity per hour : approx. 30 baskets.

Tank capacity: 11ltr. (tank heating 2000W).

Basket size : 400x400mm.

Entry height : 320mm.

Water pressure : min. 2.5 bar constant.

Water hardness: advice max. 7 gr. Mr.

The glasswasher is supplied with a connection hose set (water, drainage and electricity) and 1 glass basket.

DISHWASHER AF781 WITH FRONT LOADER DIM. 60X60X85CM. 230V/3500W ATA

Version: stainless steel.
Weight : 80kg.
Program duration : approx. 75 - 150 seconds.
Capacity : 48/24 baskets per hour.
Tank capacity 12 ltr.
Water consumption : 3 ltr. per basket.
Basket size 500x500mm.
Entry height 335mm.
Water pressure : min. 2.5 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.

Note: dishwasher is not equipped with a drain pump!

DISHWASHER AF781 WITH FRONT LOADER DIM. 60X60X85CM. 400V/6000W ATA

Version: stainless steel.
Weight : 80kg.
Program duration : approx. 75 - 150 seconds.
Capacity : 48/24 baskets per hour.
Tank capacity 12 ltr.
Water consumption : 3 ltr. per basket.
Basket size 500x500mm.
Entry height 335mm.
Water pressure : min. 2.5 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.

Note: dishwasher is not equipped with a drain pump and concerns a 400V connection. The appliance is supplied without a plug and must be connected by a recognized installer.

DISHWASHER AF781 PS WITH FRONT LOADER DIM. 60X60X85CM. 230V/3500W ATA

Version: stainless steel.
Weight : 80kg.
Program duration : approx. 75 - 150 seconds.
Capacity : 48/24 baskets per hour.
Tank capacity 12 ltr.
Water consumption : 3 ltr. per basket.
Basket size 500x500mm.
Entry height 335mm.
Water pressure : min. 2.5 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.
- drain pump

DISHWASHER AF781 PS WITH FRONT LOADER DIM. 60X60X85CM. 400V/6000W ATA

Version: stainless steel.
Weight : 80kg.
Program duration : approx. 75 - 150 seconds.
Capacity : 48/24 baskets per hour.
Tank capacity 12 ltr.
Water consumption : 3 ltr. per basket.
Basket size 500x500mm.
Entry height 335mm.
Water pressure : min. 2.5 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.
- drain pump

Note: concerns 400V connection. The appliance is supplied without a plug and must be connected by a recognized installer.

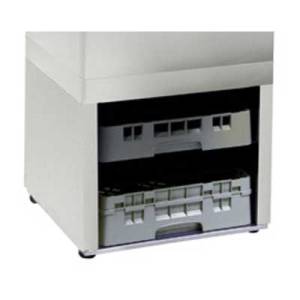

BASE DIM. 600X564X395MM. FOR DISHWASHING MACHINE ATA 781

Design: completely made of stainless steel. Substructure closed on 3 sides, stainless steel bottom shelf and 1 set of corner guides for placing dishwashing baskets.

DISHWASHING MACHINE AT 1001 DIM. 61X76X144.5/193.5CM. 400V/6.8kW ATA

Version: stainless steel.
Weight : 87 kg.
Program duration 60/150 seconds.
Capacity : 60/24 baskets per hour.
Tank capacity 20 ltr.
Water consumption : 2.5 ltr. per basket.
Basket size 500x500mm.
Entry height 430mm.
Water pressure : 2 - 4 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.

Note: concerns 400V connection. The appliance is supplied without a plug and must be connected by a recognized installer.

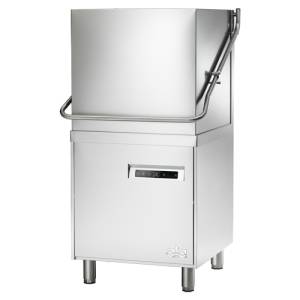

DISHWASHING MACHINE AT 1201 DIM. 66X76.9X142/193.5CM. 400V/10.1kW ATA

Version: stainless steel.
Weight : 90 kg.
Program duration 60/150 seconds.
Capacity : 60/24 baskets per hour.
Tank capacity 20 ltr.
Water consumption : 2.5 ltr. per basket.
Basket size 500x500mm.
Entry height 430mm.
Water pressure : 2 - 4 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- universal basket (pins)
- glass basket (flat)
- cutlery holder.

Note: concerns 400V connection. The appliance is supplied without a plug and must be connected by a recognized installer.

DISHWASHING MACHINE AT 1401 DIM. 66X79X144/192CM. 400V/9.2kW ATA

Version: stainless steel.
Weight : 185 kg.
Program duration 45/90/150 seconds.
Capacity : 60/24 baskets per hour.
Tank capacity 35 ltr.
Water consumption : 3 ltr. per basket.
Basket size 500x500mm.
Entry height 400mm.
Water pressure : 2 - 4 bar constant.
Inclusive:
- rinse aid dosing unit without storage container for dosing rinse aid
- connection hose set
- 3 universal baskets (pens)
- glass basket (flat)
- 2 cutlery holders.

Note: concerns 400V connection. The appliance is supplied without a plug and must be connected by a recognized installer.

BUILT-IN HOB K8EVC05

SHOWROOM MODEL (NOT USED)

Version: "Drop in" ceramic hob with two cooking zones with residual heat indicator.

Special net promotional price. SOLD OUT = SOLD OUT Only 1 available. Outlet items may not be returned.

Please note: this concerns a 400V connection. The device is supplied without a plug and must be connected by a certified installer.
